Match Identity

Name matching is a fairly simple concept to understand, but it can be challenging to evaluate and optimize for specific needs. As leaders in name matching, with experience working side by side with customers, we have created this guide to help Rosette adopters maximize its potential and quickly deliver value. The purpose of this document is to provide a deeper and practical understanding of Match, present best practices for conducting name evaluations and testing, and educate users on how to tune Match to improve accuracy and performance.

This guide assumes you are familiar with the basics of Babel Street Match (Match) as this guide is mostly focused on using the Match Plugin for Elasticsearch for evaluation and configuration. You should be comfortable indexing and querying records with Elasticsearch or making calls to the name similarity API. One goal of this document is to provide a blueprint for conducting effective name evaluations to implement the optimal configuration to support your business requirements. This guide in its entirety acts as a playbook to accomplish this task while providing deeper explanations into the inner workings of Match. By the end of this guide you should be able to execute the task and methodologies discussed in this document with your own team of engineers and data scientists.

At the most fundamental level, Match determines how similar two entities are. These entities can be made up of one or more fields that contain Person, Organization, Address, Location, or Date fields. Identifying fields are further broken down into subcomponents called tokens. For example, the tokens in a name might be the first name, middle name, and last name. Rosette blends machine learning with traditional name matching techniques such as name lists, common key, and rules to determine the best possible alignment and match score between sets of tokens. These granular scores are then combined into an overall record match score. This score can be used to maximize precision or recall depending upon the application.

There are two common usage patterns in record matching: pairwise and index.

Pairwise: In pairwise matching, you have 2 records (or even just 2 names) that you are comparing directly to one another. This comparison results in a single “similarity score” that reflects how similar the records are. There are many use cases where pairwise matching is all that is needed. For example, you already have a common key between 2 records and you simply want to check to see if the name fields are acceptably similar. This is common in identity verification applications.

Index: With index matching, you have a single record that you are comparing to a list of records. This usage pattern can be thought of as a search problem. You have a record (or maybe just the name of an entity) and want to search a large list of records to find a ‘match’. As in typical text search applications, the result of the search is a list of possible matches sorted by relevance, or in the case of fuzzy matching, record similarity. This is the case primarily discussed in this document.

Your business sets the priorities for optimizing search to find the right balance between accuracy and speed. You also determine which is more critical to your business: reducing potential matches at the expense of returning false matches or reducing false matches, with the increased risk of missing a potential match. Match’s patented two-step approach provides the best approach for users to make these critical decisions.

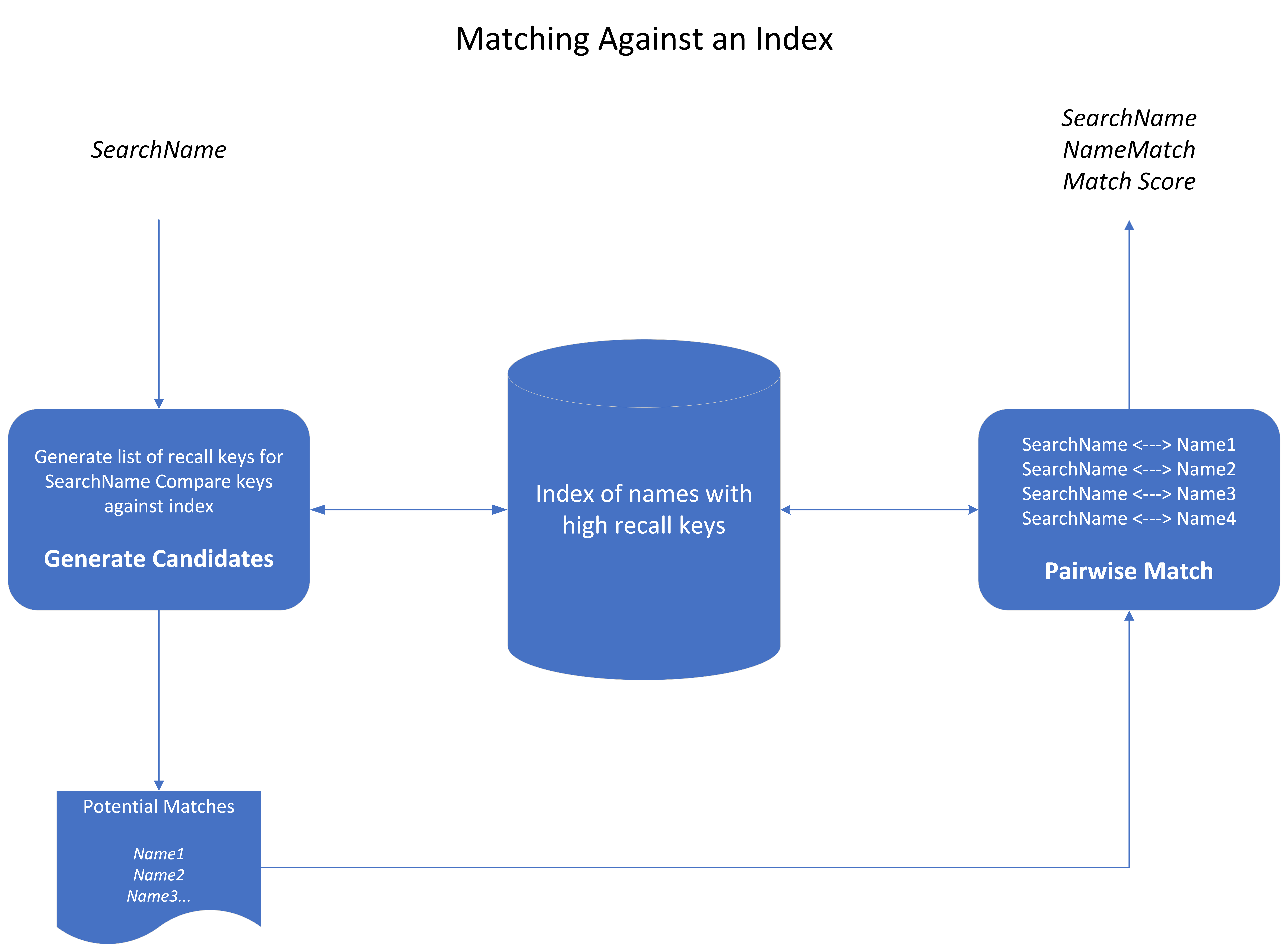

Overview of Name Matching with Match

First Pass - Generate Candidates

The first pass takes the name you want to search with and again generates a list of recall keys. These keys are compared against the indexed keys. This approach casts a wide net that reduces false positives regardless of variation (misspelling, language, etc) of name. The maximum number of candidates to send to the second pass is referred to as the windowSize. This step creates the list of records to be scored by Match.

Second Pass - Pairwise Match

The second pass acts as the precision filter which takes the original search record and compares it to each of the recall candidates from the first step. It calculates a similarity score for each name pair using Match’s algorithms and rules. The scores are then sorted into descending order and returned.

The first pass gives the system the speed necessary for high-transaction environments, eliminating values in the index from consideration. The slower second pass re-compares each selected value directly in their original script, using enhanced scoring algorithms.

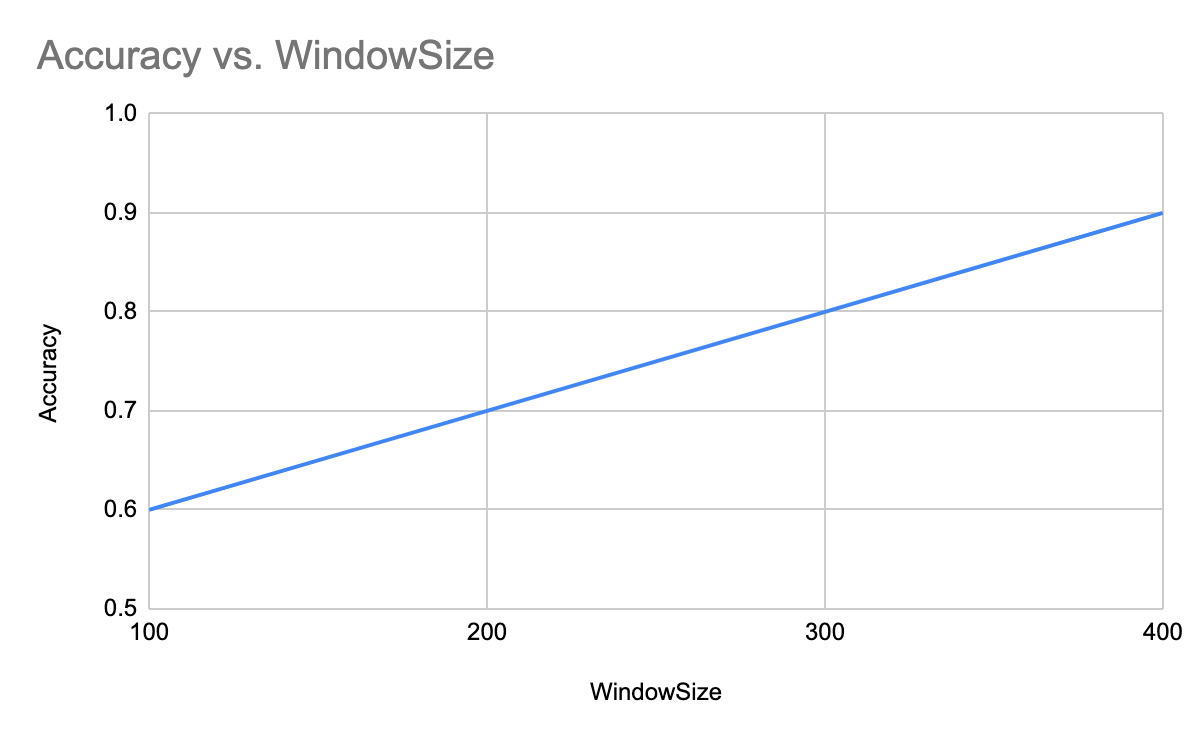

Within Match there is a relationship between accuracy and speed. The windowSize set on the first step of the search query will largely determine not just how accurate the search is, but also how fast it is. If you set your window size too small, you might miss records you intend to match on, increasing your false negatives. Increasing the window size will likely reduce false negatives, as represented in the following chart.

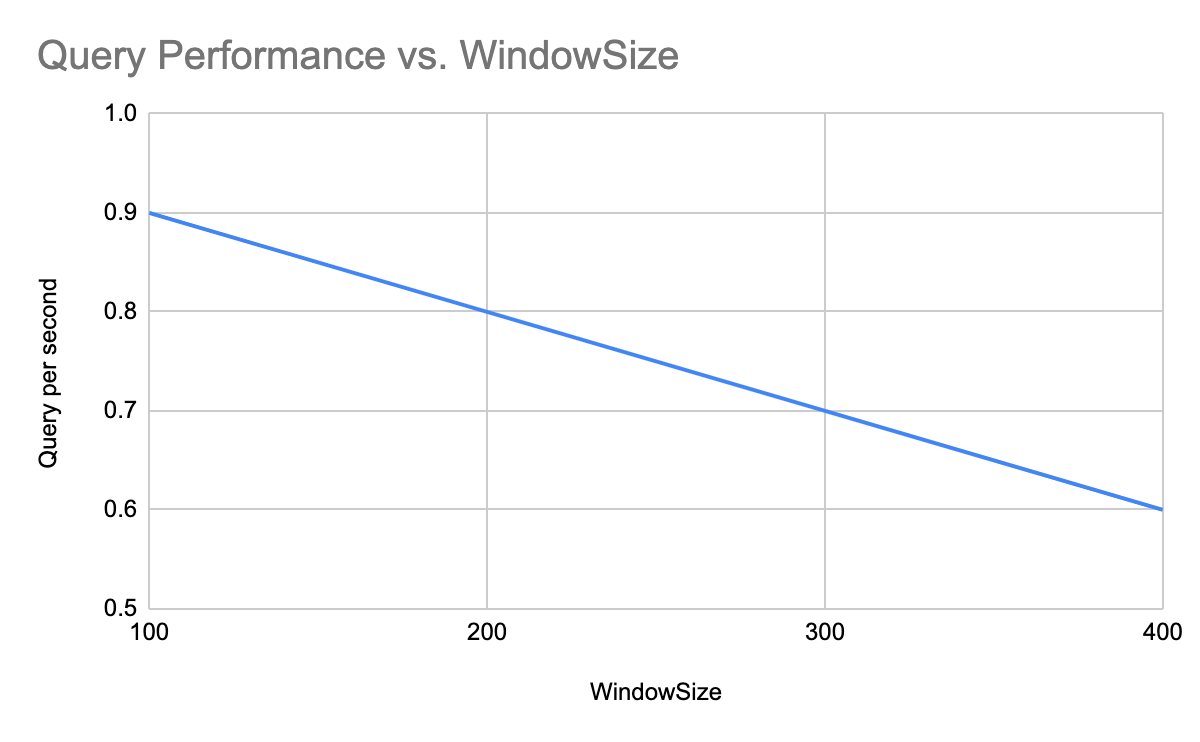

But if you set your window size too large, you will see an impact on performance. A smaller window size results in a smaller list of candidates to consider, improving performance. A larger window size results in a larger candidate pool that requires computation, decreasing performance, as represented in the following chart.

Since windowSize is tied to both accuracy and performance, determining the best value for windowSize is a critical component when performing an evaluation.

Newcomers to Match are often confused why some name pairs generate the result they do. Understanding what goes into an Match score and how to decode it is a key step in executing an effective evaluation. Rosette Match Studio (RMS) is an interactive tool for evaluating and optimizing name matching with Match by providing insight into the algorithms and parameters used. RMS provides an easy-to-use UI and displays the details of how an Match score was calculated. Let's walk through an example of an Match score using the following:

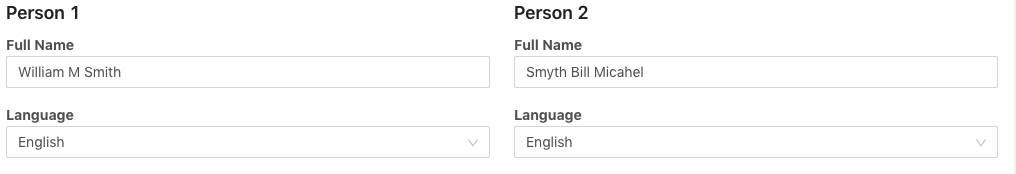

In this example we compare ‘William M Smith’ to ‘Smyth Bill Michael’. The Match result of these two names is shown below.

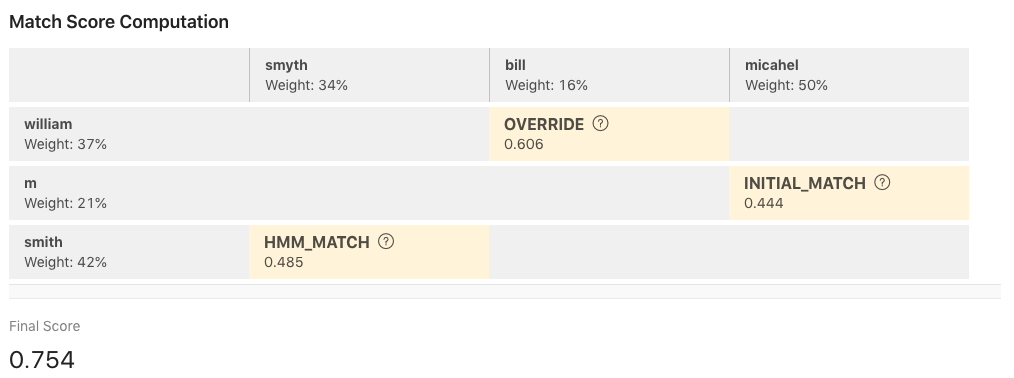

Here RMS shows how we arrived at the score of 0.754. There are several things working together to arrive at this score. Let’s review each step of the process.

Understanding the token alignment matrix is the key to understanding the Match similarity score. It allows you to effectively conduct an error analysis for a given name pair. It is important to observe and record how each token was scored. This information can be thought of as error classes and will be important later when you configure the control parameters.

Individual name tokens are scored by a number of algorithms or rules. These algorithms and rules can be manipulated by setting configuration parameters, changing the final Match similarity score. There are 100 plus Match configuration parameters. The Match Application Developer’s Guide describes these parameters in greater detail and how to modify these parameters. In RMS, you can adjust a subset of the most commonly modified parameters, seeing how they change the match scores and optimizing for your specific use cases. In Parameter configuration, we discuss techniques for setting parameters to configure your Match installation.

Matching names is a challenging problem because they can differ in so many ways, from simple misspellings, to nicknames, truncations, variable spaces (Mary Ellen, Maryellen), spelling variations, and names written in different languages. Nicknames have a strong cultural component. The terminology itself is problematic because matching implies two things that are the same or equal, but name matching is more about how similar two entities are. Once you have a measure of similarity, you may need additional rules or human analysis to determine if it is a match. It is important to understand these challenges and to address them in your evaluation.

Implementing a robust, formal methodology is the ideal way to reach accuracy and performance goals that satisfy stakeholders reliably. It’s important that the evaluation is performed on your data and in your environment. Generic test data may not have the same name variations and language distributions as your data. The only way to reliably test and improve performance is by using test data that is the same or similar enough to your production data. A formal approach provides consistency across evaluations and allows for small iterative exercises to be measured and to capture information to help improve the methodology.

Out of the box Match comes equipped with its algorithms optimized and parameters set based on generalized name testing. While this is a great starting point, each customer's data and needs are different. One customer might value recall, another precision. As a result the default Match settings might not be ideal for your environment. A primary goal of running an effective evaluation should be to identify an optimal configuration based on your data and business requirements.

Effective name evaluation should be treated with the same attention and effort as any other investment. Many efforts have failed or have been delayed simply because of a lack of appreciation for this size and importance of this task. You have to have the right team and a clear understanding of your business requirements.

Building the right team with the right skills is paramount. It should consist of engineers for building automation tasks, data scientists/business analysts to review data and analysis results, and project managers to track progress, generate reports and manage team members.

At the start of the evaluation, identify your business goals and identify key questions you need to answer. These goals will be used to shape your evaluation and also when defending the results of your analysis and stakeholders.

TBs or even GBs of information are not required to effectively test accuracy and performance. Experience has shown us that for some tasks thousands of records of data provides the same information as millions of records. While it may seem advantageous to use as much data as possible, we believe a more pragmatic approach is often best. Basis advises organizations to curate a data set that is representative of the data they will experience in an operational environment. A key distinction needs to be made between data for testing accuracy and data for testing performance.

Data for evaluating accuracy:

Data used to measure accuracy should include a wide variety of phenomena that make name matching challenging, including misspellings, aliases or nicknames, initials, and non-Latin scripts. Applying organizational domain knowledge to curating name data that contains specific phenomena found in your real world cases is an ideal starting point for crafting this data set.

Your data for testing accuracy should contain labeled or annotated data. This is often called gold data, referring to the accuracy of the training set's classification for supervised learning techniques. For name matching, it is a list of name pairs that are considered a match. You can’t calculate accuracy without labeled data. Since assigning classification labels to data can be subjective, you should use multiple annotators on the same data set, determining positive and negative name matches. Establishing a set of annotation guidelines for scoring a classification is necessary as it provides consistency when classifying the data.

JRC-Names is an industry standard, open-source gold data set. It is a named entity resource, consisting of large lists of names and their many spelling variants. Variations include misspellings, extra or missing fields, concatenations, reordering, extra syllables. This data set is an excellent representation of the challenges found in real world applications. You still have to determine if this data set reflects your business data but is a great place to start.

Data for evaluating performance:

Performance data does not need any classification or gold labeling. Since you will be examining query execution time, you need only hundreds to thousands of records. The key with performance data is to have an index size representative of your production index.

Where possible, you should always set the entity type and language arguments. While these arguments are optional and Match is flexible enough to work without them, you will see better results when you use them.

Match has different algorithms for matching PERSON and ORGANIZATION names. If you don't specify the entity type, Match will use a simplified rule set of the PERSON entity type. This may lead to scores that do not meet expectations.

Similarly, when language and script are not provided Match will attempt to guess what the language is. Given the similarity across some languages like Ukrainian and Russian or Japanese and Chinese, the guess may be incorrect. The language determines what model and rules are applied in the scoring and if the language/script are wrong it will likely lead to less accurate Match scores.

It is strongly recommended that the entity type and language/script are determined and set during indexing and querying processes.

Name tokenization is the process of breaking up a name into pieces such as first name and last name. Use the list of names you have indexed and any historical queries you have saved to determine how often a token appears in your name universe. Match processes full names, but the underlying algorithms work on a token level. Knowing how often a name token appears can provide insight into how to improve accuracy. For English names tokenization is as simple as finding the white space in a name. For languages that don’t use whitespace, you may need to incorporate Rosette Base Linguistics (RBL) which provides tokenization for 33 languages. The end result of this process should look like the following table.

Token frequency lets us accomplish a few things.

Evaluating your data set will provide insight into the scoring for each name pair and can result in a breakdown of errors for each name pair. This information can show you which parameters have the largest impact in name scoring with your data and direct you towards the parameters to target for adjustment. Given the large number of configurable match parameters in Match, it is advisable to start with just a few. Once again, this process can be done via automation, as was done with determining the optimal threshold. Take a range of values for a small set of parameters and run your evaluation against all possible parameter configurations to determine the accuracy for each configuration. The end result of this process will be a threshold value along with the optimal parameter configuration. Using the data processing techniques from the previous section, you can extend it to include finding how often some of the following phenomena occur in your data sets.

Users have the ability to classify specific tokens as ‘low weight’. These are tokens that you don’t want removed from the scoring of the name but should not carry the same weight as other name tokens. Given the following organization name example: ‘XYZ Systems’. The name token ‘Systems’ is commonly used in company names. This token will help contribute to matching against other organizations names likely creating false positives hits. Users can identify ‘Systems’ as a low weight token and add it to lowWeighttokens.datafiles and Match will decrease its importance when scoring names that contain ‘Systems’. In the above case the result will put more emphasis on the ‘XYZ’ name token.

Adding additional search signals to your query greatly impacts the accuracy of your results. Match can also incorporate search signals of field types that it does not support. Fields like ‘gender’ or ‘occupation’ are not supported by Match but can be used in the rescoring process to help optimize accuracy. While assessing your data a key step would be to evaluate the various fields and determine how sparse your data is. If many fields are optional when collecting data, this can result in missing or null data. Knowing how sparse your data is will give insight on the best way to craft your rescoring process. Users can control how missing or null data is handled by the rescoring process. By default, if a queried-for field is null in the index, the field is removed from the score calculation, and the weights of the other fields are redistributed. However, you can override this behavior by using the score_if_null option to specify what score should be returned for this field if it is null in the index document.

The next step is to determine how fields should be weighted by the rescoring algorithm. Each field can be given a weight to reflect its importance in the overall matching logic. Determining the ideal weight can be a challenge that requires understanding your data. How much do you trust the quality of each field and what is its importance to your business goals? It is advisable to think about a range of weights for each field, giving primary fields like person name and organization name high ranges and fields of lesser importance and quality lower ranges. Let’s look at an example to illustrate the impact of field weighting.

Given the following two records:

RECORD 1 RECORD 2

NAME: John Doe NAME: John Dowse

DOB: 07-23-1985 DOB: 07-23-1985

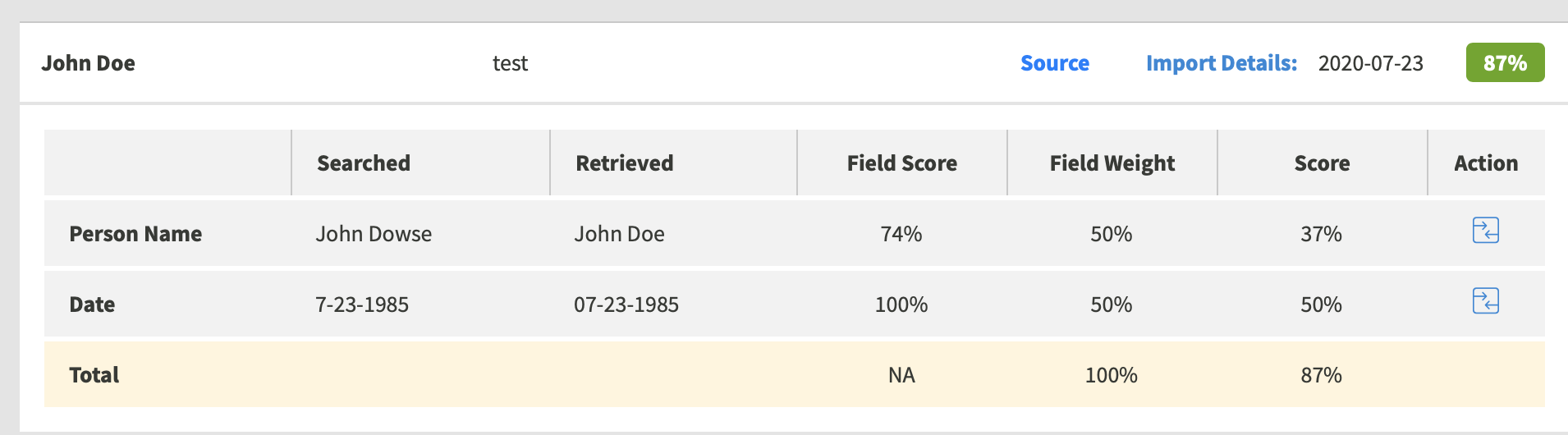

If the ‘NAME’ and ‘DOB’ fields are given equal weighting, the score in this case is 87% between the two records.

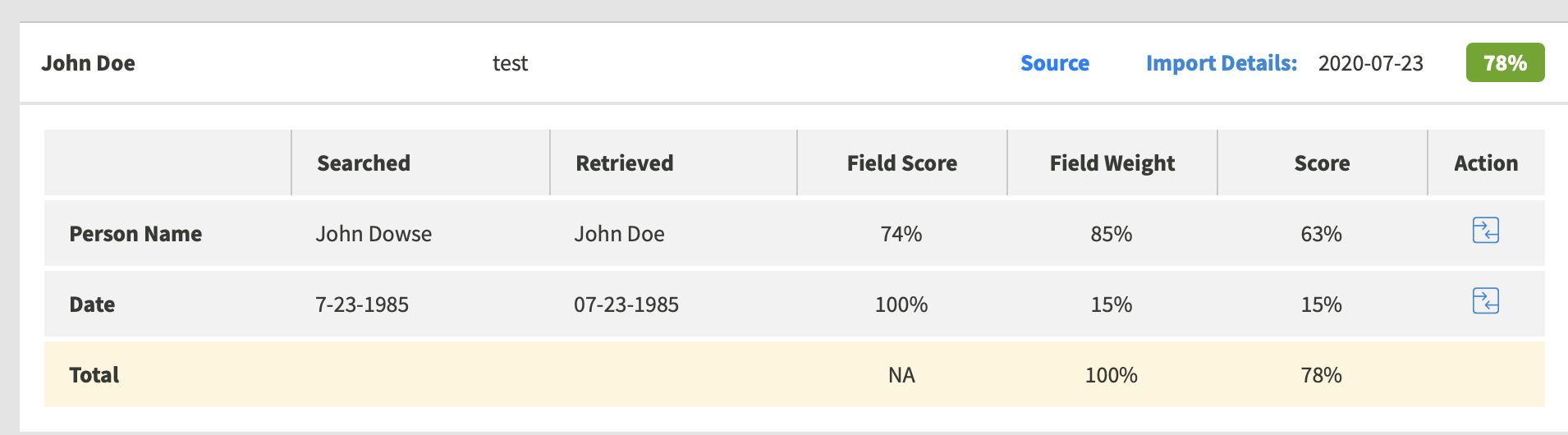

This is a strong Match score but likely a false positive as the last names are noticeably different. Now let's give the ‘NAME’ a weight of 85% and ‘DOB’ 15%.

Let's assume we apply a threshold of 80%. With this weighting configuration our match score falls below the threshold, turning the once false positive into a true negative, thus improving the accuracy.

Identify the ranges for your field weights, then update your evaluation framework to include various configurations when identifying an optimal accuracy threshold.

Pairwise matching in Match has the benefit of being completely stateless, making it possible to optimize performance through parallelization. You are limited only by the concurrency limit on Server/Cloud or your client application.

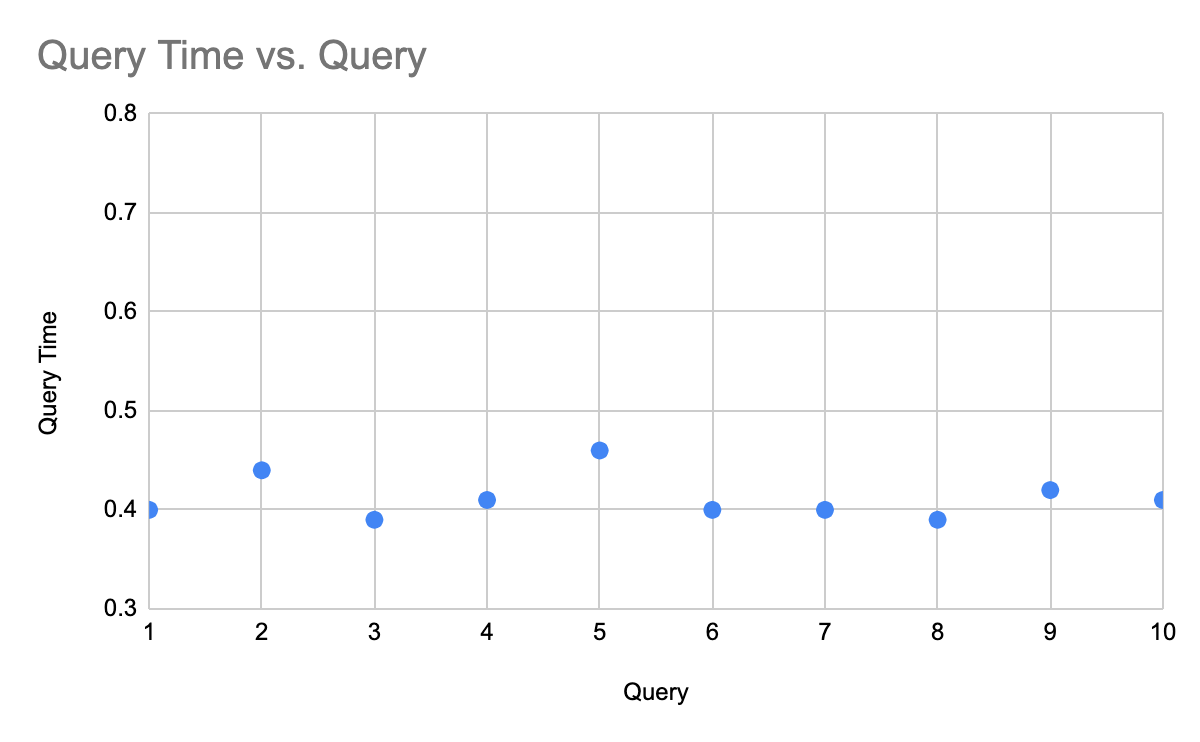

First you must define what you are trying to optimize. Latency? Throughput? In Match latency is often thought of as “seconds per query” or how long a query takes to execute. Throughput is usually defined as “how long does this list of queries take to run?” Inside Match, latency and throughput depend on many factors:

We will examine each of these below.

WindowSize

The query rescorer executes a second query only on the Top-K results returned by the query and post-filter phases. The number of docs which will be examined on each shard can be controlled by the windowSize parameter, which defaults to 10. As mentioned previously, the windowSize set in the first step of the query has a direct impact on the performance of Match. Setting the windowSize to a small value limits the number of candidates sent to the second pass. Note that the windowSize will be applied to each shard in your index. The chart below illustrates the relationship between performance and windowSize.
